  • Make: Lowrance
  • Year: 2021

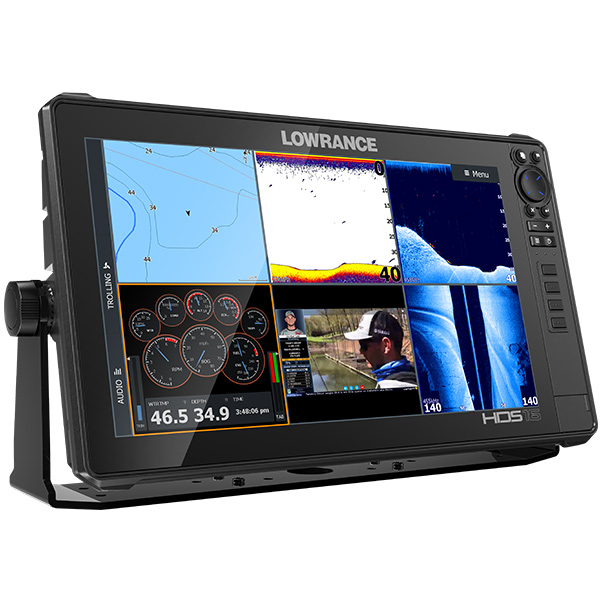

  • Name: Lowrance HDS Live 16 Touch Combo Aus/Nz No Xd
  • Price:
  • Condition: New
  • Warranty: Valid
  • Registration Expiry: N/A
  • Stock Number: N/A
Brand Lowrance Country of Manufacture Taiwan Physical Dimensions 430mmW x 259.2mmH x 87.8mmD no bracket 463.1mmW x 262.9mmH x 102mmD with bracket Screen Size 16" Display Resolution 1920W x 1080V pixels Screen Brightness 1200 nits Processor Quad-Core IPX Water Rating IPX7 Voltage 12vDC Wattage 67.62w Transmit Power 1kw RMS Ethernet Ports for multiple screens 2 Ports Wireless Network Yes NMEA0183 Compatibility Yes NMEA2000 Compatibility Yes Video Input Ports 1 HDMI, 1 analogue port with optional cable (GPC975) Mounting Options Bracket Mount and Flush-mount WiFi Connectivity Builtin Expansion Card Slot 2 x microSD Warranty 2 Years; Transducers, Parts & Accessories: 1 year Accepted Map Cards Navionics+, Navionics Platinum+, CMAP MAX-N+ Waypoints 3000 Routes 100 Track Log 100 Trails / Up to 10,000 points Sonar Compatible Yes Supports AIS (tracks target ships position) Yes Tide Tables (from map card option) Yes Autopilot Compatible Yes Trolling Motor Compatible Yes Audio System Comaptible Yes Fusion-Link Compatible Marine Radio Support Yes Radar Compatible Yes Wireless Remote Compatible Yes Chirp Sonar Yes Operating Frequency 50KHz, 83KHz, 200KHz, 455KHz, 800KHz, Low CHIRP, Med CHIRP, High CHIRP Active Imaging (Transducer Dependant) Yes with Active Image or 3-in-1 Transducer & Software 18.3 or greater Down Imaging (Transducer Dependant) Yes Useable Depth Down Imgaging 50m+ Sonar Useable Depth (T/D & Frequency Dependant) 300m+ with 1kW T/Ducer Side Imaging (Transducer Dependant) Yes Sonar Track Back Yes Output Power: RMS 1kw Water Temperature Yes
16" SolarMAX HD IPS Multi-touch display - the best Resolution and viewing experience. 1920 x 1080 Pixels, 1200 nits brightness Active Imaging 3-in-1 (CHIRP/SideScan/Downscan) giving even better clarity than StructureScan HD and allowing multiple angle views to be shown all at once Active Imaging 2-in-1 ready FishReveal brings extra distinction of Fish targets, highlighting them on the screen to visually separate from structure Powerful Quad-Core processor Active Imaging 3D enhancement (when paired with optional Transducer - ESA703) brings even more detail and structure definition with reduced Noise level and better ability to isolate specific depths Livesight Down - Lets you understand how the Fish are moving in relation to structure, giving live views of Fish and they move in and around cover 6-Panel Split means you can fully take advantage of your large screen real estate and see an incredible amount of information at once C-MAP Genesis Live compatible - Letting you custom map your favourite spots or even entire lakes as you choose Pre-loaded with C-MAP Continental map including coverage of Australia, New Zealand, Fiji and New Caledonia, expandable with optional extra C-MAP or Navionics charts LiveCast lets you connect your smartphone directly to your unit to display weather/satellite imagery or even entertainment on your HDS Live while you are on the water 4 programmable quick access keys allow you to set commonly used features to always be at hand, such as setting a Waypoint, standby, open a favourite page and countless more. They can even be programmed to have a second different function on long press, essentially giving you 8 programmable keys Improved user interface with dedicated home screen icons Optional wireless remote is easy to connect and improves usability, letting you add Waypoints remotely and activate up to 5 favourite features without needing to touch the screen NMEA2000 connectivity for full network functions and data sharing SmartSteer allows on screen control of MotorGuide Xi5 and Xi3 Pinpoint GPS equipped Trolling motors allowing easy use of Anchor lock, Heading lock, follow routes and Go to cursor functions Fully compatible with all advanced features of Halo24 and 4G radars such as Dual Range, Velocity Track, Target Separation and Beam sharpening. Compatible with Simrad Open arrays of 3/4/6ft sizes SonicHub connectivity lets you enjoy your music through the system on the water
