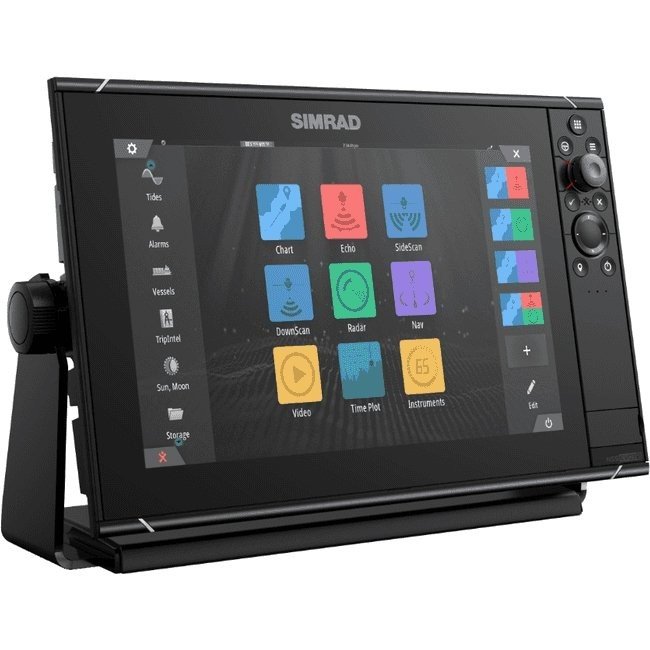

NSS12 EVO3S COMBO MFD,WORLD BASEMAP


$5,599.00
* Purchase Now
Send an Enquiry
Stock coming soon - Enquire for availability
Select Quantity

  • Make: Simrad
  • Year: 2021
  • Name: NSS12 EVO3S COMBO MFD,WORLD BASEMAP
  • Price:
    $5,599.00
  • Condition: New
  • Warranty: N/A
  • Registration Expiry: N/A
  • Stock Number: N/A
  • 12.1" SolarMAX HD1200 nits optically bonded TFT widescreen touch display, 1280 x 800 Resolution
  • 260mmW x 162mmH, 307mmDiagonal viewable area
  • IPX7 waterproof protection
  • Full Control via touchscreen or keypad
  • iMX8 processor provides smooth operation and faster loading
  • New user-friendly software interface with dark themed minimal light pollution scheme, additional Chart orientation controls as well as Tide graph in the instrument bar and a full page audio control set up
  • User configurable WheelKey - set up the WheelKey to control your favourite function
  • Power: 10 - 31.2V 30w max
  • Output Power: 1kw RMS
  • Built-in dual Channel CHIRP (Transducers required)
  • Built-in ForwardScan Sonar and StructureScan HD imaging (Transducers required). Supports simultaneous use of Structure Scan & chirp. Forwardscan and echo cannot be displayed simultaneously, unless they are plugged in to separate devices. The echo will be paused while ForwardScan is viewed and vise-versa.
  • StructureScan 3D option
  • Built-in Bluetooth and WiFi connectivity
  • Expand your view with Halo pulse Compression >Radar, >Broadband 3G/4G, and other Simrad >Radar solutions
  • TripIntel technology - displays fuel RangeCurrent and future Tide levels and a detailed history of your previous trips when connected to optional sensors
  • Built-in GoFree Wi-Fi enables online features and smartphone monitoring/tablet control
  • Dual MicroSD slots, max. 32GB, larger in NTFS.
  • 1 NMEA2000, 1 NMEA0183 connection, 2 composite RCA Video inputs via optional cable, 2 Ethernet ports, Flir camera integration
  • Mounting: choose flush-mount installation for a low-profile Glass Bridge look, or bracket-mount to install almost anywhere. Same flush mount cutout and bracket as evo2.
  • C-MAP RevealNavionics+ & Platinum Map options
  • Supports Navionics SonarChart Live - create new personal 1 ft/0.5 m HD bathymetry maps that display in real time while navigating
  • 6000 waypoints, 500 Routes with up to 12,000 track points
  • Built-in 10Hz GPS Receiver(External option).
  • NMEA0183/2000 & Ethernet expandability compati
  • iMX 8 Integrated six-core processor for superior performance
  • 12-inch SolarMAX ™ IPS display with ultra-wide viewing angles; viewable through Polarized sunglasses
  • Switch seamlessly between touchscreen and keypad control
  • Built in high-performance echosounder with 1kW CHIRP
  • Built-in GPS receiver and wireless connectivity
  • Control Simrad sonar, radar, autopilot, and other accessories
  • Industry-standard connectivity to engines, sound system, and more
  • TripIntel™ trip planning and support for automatic routing
  • Choose low-profile flush mounting or convenient bracket mounting
  • Download the Simrad App and connect with smartphones, tablets, and internet hotspots
  • Includes world basemap
