NSS16 EVO3S COMBO MFD,WORLD BASEMAP

$7,999.00

* Purchase Now

Send an Enquiry

Stock coming soon - Enquire for availability

Select Quantity

Send an Enquiry

Details Specifications Features & Options

Make: Simrad
Year: 2021

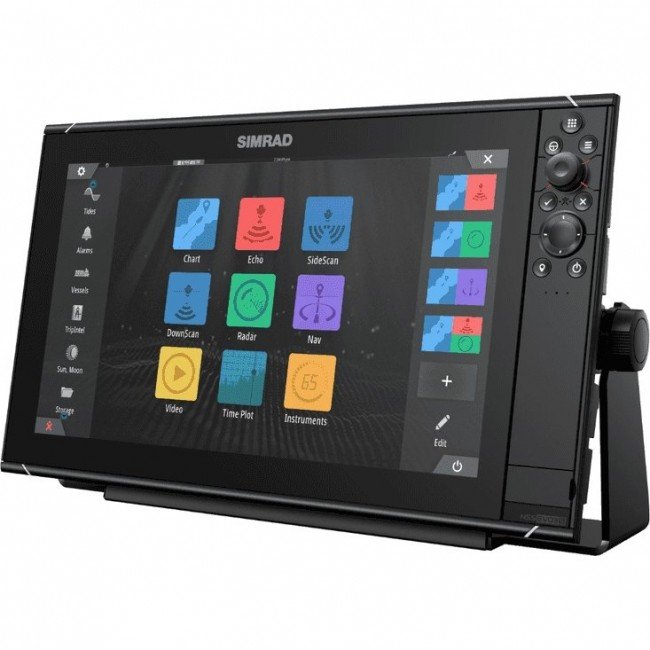

Name: NSS16 EVO3S COMBO MFD,WORLD BASEMAP
Price:
$7,999.00
Condition: New

Warranty: N/A
Registration Expiry: N/A
Stock Number: N/A

15.6" SolarMAX HD widescreen touch display, 343mmW x 194mmH, 1080 x 1920 Resolution. Screen Size Comparison
343mmW x 192mmH, 393mmDiagonal viewable area
Full Control via touchscreen or keypad
User configurable WheelKey - set up the WheelKey to control your favourite function
New user-friendly HEROiC 2 software interface
IPX7 waterproof protection
Power: 10 - 31.2 V DC 45w (MAX)
Output Power: 1kw RMS
Built-in dual Channel CHIRP (Transducers required)
Built-in ForwardScan Sonar and StructureScan HD imaging (Transducers required). Supports simultaneous use of Structure Scan & chirp. Forwardscan and echo cannot be displayed simultaneously, unless they are plugged in to separate devices. The echo will be paused while ForwardScan is viewed and vise-versa.
StructureScan 3D option
Built-in Bluetooth and WiFi connectivity
Expand your view with Halo pulse Compression >Radar, >Broadband 3G/4G, and other Simrad >Radar solutions
TripIntel technology - displays fuel Range, Current and future Tide levels and a detailed history of your previous trips when connected to optional sensors
Built-in GoFree Wi-Fi enables online features and smartphone monitoring/tablet control
Dual MicroSD slots, max. 32GB each, larger if NTFS
2 composite RCA Video inputs via optional cable, 2 Ethernet ports, FLIR camera integration
Connect via 7-9 pin adapter option to Blue Plug Transducer
Power: 10 - 31.2 V DC
Mounting: choose flush-mount installation for a low-profile Glass Bridge look, or bracket-mount to install almost anywhere. Same flush mount cutout as evo2.

iMX 8 Integrated six-core processor for superior performance
16-inch SolarMAX ™ IPS display with ultra-wide viewing angles; viewable through Polarized sunglasses
Switch seamlessly between touchscreen and keypad control
Built in high-performance echosounder with 1kW CHIRP
Built-in GPS receiver and wireless connectivity
Control Simrad sonar, radar, autopilot, and other accessories
Industry-standard connectivity to engines, sound system, and more
TripIntel™ trip planning and support for automatic routing
Choose low-profile flush mounting or convenient bracket mounting
Download the Simrad App and connect with smartphones, tablets, and internet hotspots
Includes world basemap
