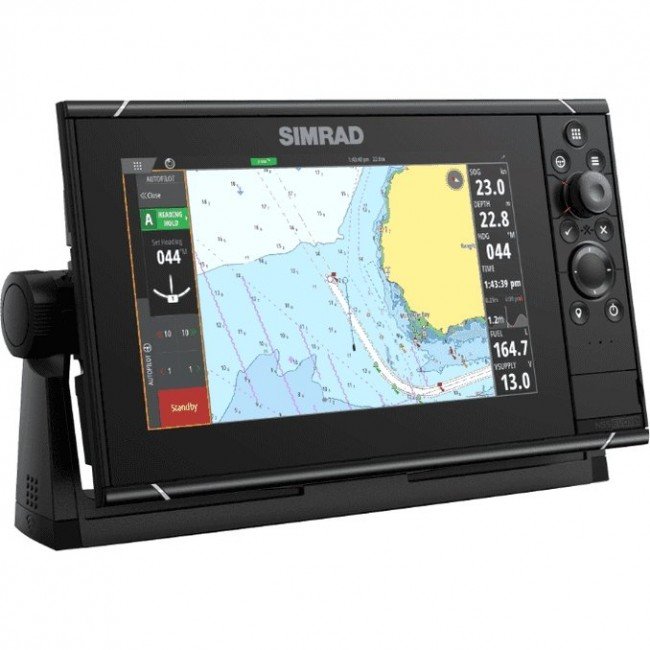

SIMRAD NSS 9 Evo 3S Combo

$3,635.00

* Purchase Now

Send an Enquiry

Stock coming soon - Enquire for availability

Select Quantity

Send an Enquiry

Details Specifications Features & Options

Make: Simrad
Year: 2021
Name: SIMRAD NSS 9 Evo 3S Combo
Price:
$3,635.00
Condition: New

Warranty: N/A
Registration Expiry: N/A
Stock Number: N/A

9" SolarMAX HD1200 nits optically bonded TFT widescreen touch display, 1280 x 720 Resolution
197mmW x 110mmH, 227mmDiagonal viewable area
IPX7 waterproof protection
Full Control via touchscreen or keypad
iMX8 processor provides smooth operation and faster loading
New user-friendly software interface with dark themed minimal light pollution scheme, additional chart orientation controls as well as tide graph in the instrument bar and a full page audio control set up
User configurable WheelKey - set up the WheelKey to control your favourite function
Power: 10 - 31. 2V 23w max
Output Power: 1kw RMS
Built-in dual channel CHIRP (Transducers required)
Built-in ForwardScan sonar and StructureScan HD imaging (Transducers required). Supports simultaneous use of structure scan & chirp. Forwardscan and echo cannot be displayed simultaneously, unless they are plugged in to separate devices. The echo will be paused while ForwardScan is viewed and vise-versa.
StructureScan 3D option
Built-in Bluetooth and WiFi connectivity
Expand your view with Halo Pulse Compression radar, Broadband 3G/4G, and other Simrad radar solutions
TripIntel technology - displays fuel range, Current and future Tide levels and a detailed history of your previous trips when connected to optional sensors
Built-in GoFree Wi-Fi enables online features and smartphone monitoring/tablet control
Dual MicroSD slots, max. 32GB, larger in NTFS.
1 NMEA2000, 1 NMEA0183 connection, 2 composite RCA Video inputs via optional cable, 2 Ethernet ports, Flir camera integration
Mounting: choose flush-mount installation for a low-profile Glass Bridge look, or bracket-mount to install almost anywhere. Same flush mount cutout and bracket as evo2.
C-MAP Reveal, Navionics+ & Platinum Map options
Supports Navionics Sonarchart Live - create new personal 1 ft/0. 5 m HD bathymetry maps that display in real time while navigating
6000 waypoints, 500 Routes with up to 12,000 track points
Built-in 10Hz GPS Receiver. (External option).
NMEA0183/2000 & Ethernet expandability compatible

iMX 8 Integrated six-core processor for superior performance
9-inch SolarMAX ™ IPS display with ultra-wide viewing angles; viewable through Polarized sunglasses
Switch seamlessly between touchscreen and keypad control
Built in high-performance echosounder with 1kW CHIRP
Built-in GPS receiver and wireless connectivity
Control Simrad sonar, radar, autopilot, and other accessories
Industry-standard connectivity to engines, sound system, and more
TripIntel™ trip planning and support for automatic routing
Choose low-profile flush mounting or convenient bracket mounting
Download the Simrad App and connect with smartphones, tablets, and internet hotspots
Includes world basemap
